Amplifier

Subwoofer amplifier

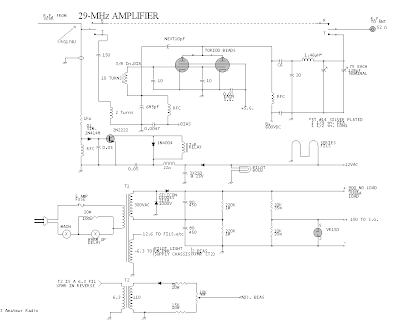

Amplifier frequency 29 MHz (Amplifier)

UHF - TV Preamplifier

Game Roller or Chase Circuit

Electronic Roulette Game

The tone generator circuit with IC 555 (8 ohm speaker)


This is a basic 555 squarewave oscillator used to produce a 1 Khz tone from an 8 ohm speaker. In the circuit on the left, the speaker is isolated from the oscillator by the NPN medium power transistor which also provides more current than can be obtained directly from the 555 (limit = 200 mA). A small capacitor is used at the transistor base to slow the switching times which reduces the inductive voltage produced by the speaker. Frequency is about 1.44/(R1 + 2*R2)C where R1 (1K) is much smaller than R2 (6.2K) to produce a near squarewave. Lower frequencies can be obtained by increasing the 6.2K value, higher frequencies will probably require a smaller capacitor as R1 cannot be reduced much below 1K. Lower volume levels can be obtained by adding a small resistor in series with the speaker (10-100 ohms). In the circuit on the right, the speaker is directly driven from the 555 timer output. The series capacitor (100 uF) increases the output by supplying an AC current to the speaker and driving it in both directions rather than just a pulsating DC current which would be the case without the capacitor. The 51 ohm resistor limits the current to less than 200 mA to prevent overloading the timer output at 9 volts. At 4.5 volts, a smaller resistor can be used.

Bell generator circuit using the switching supply

Bell generator circuit (556)

Bell generator circuit. Of Power Trans software Merrill small

วันพุธที่ 15 ธันวาคม พ.ศ. 2553

Clock generator circuits

Excellent clock generator to drive 4017 type cmos circuits.
R1 = 10K to 10M, C1 = 100pF to 47uF.
Fo is (+ -)1KHz เมื่อ R1=100K and C1=10nF.
Input voltage can be from 5 to 15V.

Saw tooth signal generator

square wave signal generator circuit 500 KHz to 5 KHz

Signal generator circuit IF 455KHz

Pulse generator Time Delay with IC 555

Noise generator Frequency Band width


ToneBurst Generator Circuit (Square wave)


Sound Effect generator circuit

Pink Noise generator circuit for the test signal

Change signal generator square value

Theft 5 points

Stealing Car

Theft

วันจันทร์ที่ 13 ธันวาคม พ.ศ. 2553

Reversing Dc Motor Circuit

Graphics Equalizer Circuit (10 band) #2


R1....20= 10Kohms
C4= 10nF polyester
C18= 68pF polysterine

R21....40= 1Mohms
C5= 47nF polyester
C19= 360pF polysterine

R41= 10Kohms
C6= 4.7nF polyester
C20= 36pF polysterine

R42= 1Kohms
C7= 22nF polyester
C21= 4.7uF polyester

R43.....52= 2.2Kohms
C8= 2.2nF polyester
C22-23= 33pF polysterine

R53.....62= 47Kohms
C9= 12nF polyester
C24= 10uF 25V

R63-64-66-67= 47Kohms
C10= 1.2nF polyester
C25-26= 47uF 25V

R65= 10Kohms
C11= 5.6nF polyester
C27...32= 47nF polyester

R68-69= 47 ohms 1/2W
C12= 560pF polysterine
IC1...3= TL074

RV1....10= 100Kohms lin FADER
C13= 2.7nF polyester
S1= 2X4 SW for stereo

RV11= 10Kohms log.
C14= 270pF polysterine

C1= 180nF polyester
C15= 1.5nF polyester

C2= 18nF polyester
C16= 150pF polysterine

C3= 100nF polyester
C17= 680pF polysterine

Graphics Equalizer Circuit (10 band) #1


R1-29=100 ohms
C7=220nF 100V
C20=1nF 100V
R2-5-31=1Mohms
C8=100nF 100V
C21=560pF
R3=47Kohms
C9=47nF 100V
C22=270pF
R4=15Kohms
C10=27nF 100V
C23=150pF
R6-28=10Kohms
C11=12nF 100V
C25=150pF
R7....17=1Kohms
C12=6.8nF 100V
C26=10uF/25V
R18....27=220Kohms
C13=3.3nF 100V
RV1=250Kohms Lin.
C1=47uF/25V
C14=68nF 100V
RV2.....12=4.7Kohms Lin.
C2=47pF
C15=33nF 100V
IC1...3=TL074
C3=150pF
C16=18nF 100V
S1=2X2 SW
C4=1.5uF 100V
C17=8.2nF 100V
J1...3=RCA Jack
C5=820nF 100V
C18=3.9nF 100V
All Resitors is 1/4W 1%
C6=390nF 100V
C19=2.2nF 100V

Graphics Equalizer Circuit (6 band)


R1=47Kohms
C2=15nF 100V
C9=680nF 100V
R2-5-18=150Kohms
C3=150nF 100V
C10=150nF 100V
R3-4=10Kohms
C4=33nF 100V
C11=39nF 100V
R6....17=10Kohms
C5=8.2nF 100V
C12=8.2nF 100V
R19=100Kohms
C6=1nF 100V
C13=2.2nF 100V
RV1.....6=100Kohms Lin .
C7=470pF 100V
C14=470nF 100V
C1=1uF 100V
C8=680nF 100V
IC1-2=TL074

Graphics Equalizer Circuit (5 band) #2

Graphics Equalizer Circuit (5 band) #1


R1-4-37= 330Kohms ,R34= 15Mohms ,C12= 4.7nF 100V
R2-7= 2.2Kohms, R35-38= 220 ohms 1W ,C13= 1.5nF 100V
R3= 120Kohms ,R36= 100 ohms, C14= 470pF 100V
R5-6= 6.8Kohms ,C1-3= 1uF 40V ,C15= 68pF 100V
R8....12= 1.8Kohms, C2= 68pF 100V ,C16-19= 100nF 100V
R13....15= 200Kohms ,C4= 220uF 63V ,C17-20= 470uF 40V
R16= 180Kohms ,C5= 1uF 100V ,C18= 4.7uF 63V
R17= 150Kohms ,C6= 220nF 100V ,RV1....5= 50Kohms Lin.
R18= 1.5Kohms ,C7= 47nF 100V, Q1.....7= BC550C
R19....22= 1Kohms, C8= 15nF 100V ,S1= 2X2 SW
R23....27= 220Kohms ,C9= 5.6nF 100V .
R28....32= 15Kohms ,C10= 47nF 100V .
R33= 10Kohms ,C11= 15nF 100V .

Graphics Equalizer Circuit (3 band)


R1-2= 47Kohms C1-11= 10uF 25V C8= 1.2nF 63V MKT
R3-4-5-12-13= 10Kohms C2= 33pF ceramic C9-10= 100nF 63V MKT
R6-7= 3.3Kohms C3= 2.2uF 63V MKT C12=47uF 25V
R8-9= 1.8Kohms C4= 47nF 63V MKT RV1-2= 100Kohms Lin.
R10= 270ohms C5-7= 4.7nF 63V MKT RV3= 470Kohms Lin.
R11= 22Kohms C6= 22nF 63V MKT IC1= TL072, NE5532

Click game show circuit
